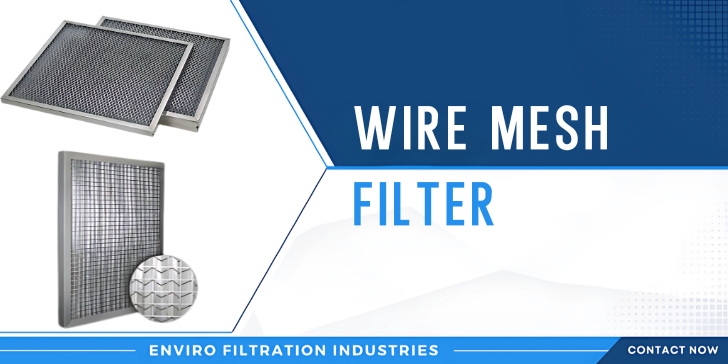

WIRE MESH FILTER

WIRE MESH FILTER

A wire mesh pre-filter is a preliminary filtration device designed to remove larger particles and debris from air before they reach more sensitive or finer filtration systems. Constructed from woven metal wires, it features a sturdy mesh that captures particulates like dust, leaves, and other sizable contaminants. By doing so, it extends the lifespan and efficiency of subsequent filters by reducing the load they need to handle. Wire mesh pre-filters are commonly used in HVAC systems, industrial equipment, and various machinery to improve overall performance and reduce maintenance costs. They are durable, reusable, and easy to clean, making them a practical choice for many applications.

Features

• Light weight, safe, sturdy structure
• Reusable after washing
• Low cost and low resistance
• Resistant to corrosion, high temperature, acid, and alkali
• Long service life

Applications

1. Anti-temperature and large dust filtration in high temperature environments
2. Pre-filter in air filtration systems
3. Air conditioner's input draught
4. Junior filtration of industrial air ventilation equipment

Specifications

1. Classification: flat type or pleat type
2. Media material: aluminum mesh, stainless steel mesh, knitted mesh
3. Structure: multi-layer frame type with wave form aluminum or stainless steel mesh
4. Protective mesh: woven mesh, perforated mesh, expanded mesh, welded mesh
5. Filter rating: 1–10 µm
6. EN799 class: G2
7. Maximum air flow: 125% of rated air flow
8. Highest operating temperature: 500°C
